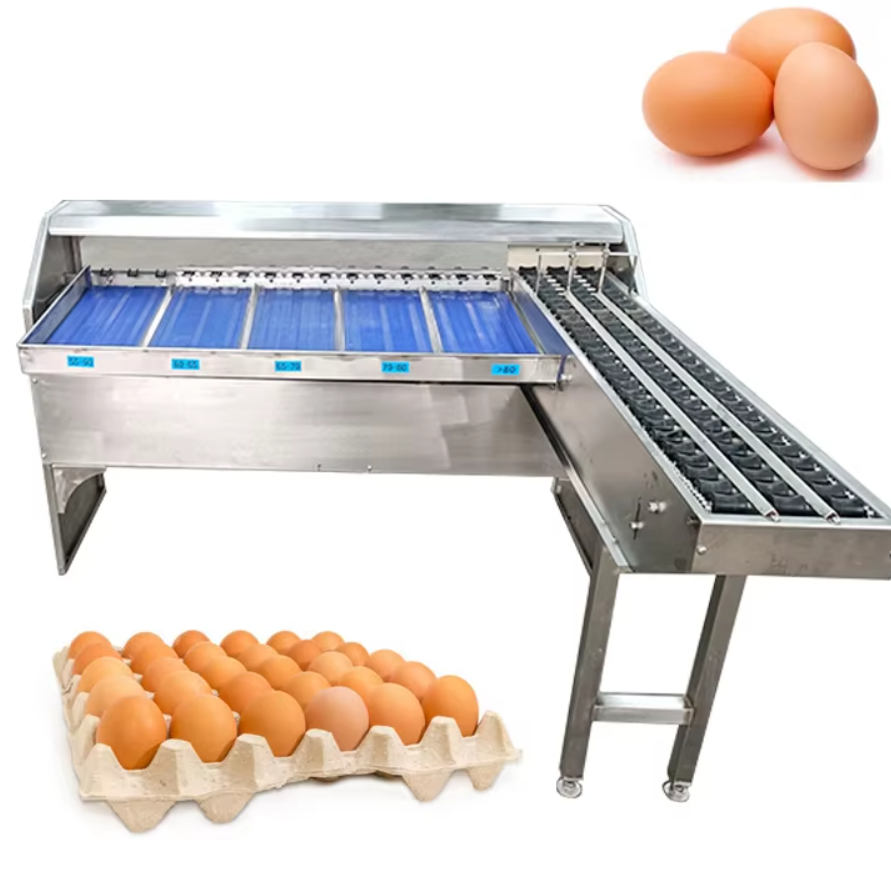

Quality Egg Grading & Sorting System (Vacuum Egg Lifter • Scale • Sorter • Candling Machine)
This advanced egg grading system integrates multiple processes — vacuum egg lifting, weighing & grading by weight, optical candling/inspection, and sorting into multiple grades. Built from food-grade stainless steel for hygiene and durability, it’s suitable for high-throughput egg processing plants, farms and commercial packaging lines. With automated conveyors, PLC/PLC-touch control, optional tray-packing and counting functions, this machine streamlines the workflow from egg loading to final tray output.
It handles manual or semi-automatic feeding, supports left/right load directions, and links with washing, printing and packing systems as part of a full processing line.
| Specification | Typical Values / Variants |
|---|---|
| Capacity | 4,000 eggs/hour up to 10,000 eggs/hour (depending on model) (egg-machine.com) |
| Accuracy (weighing) | ± 1 g (for most models) (en.zenyer.cn) |
| Number of Grades | 4 to 7 grades (depending on model) (egg-equipment.com) |
| Material | Stainless steel frame (food-grade) for hygiene and durability (taizymachinery.en.made-in-china.com) |
| Vacuum Egg Lifter Option | Yes; supports automatic vacuum loading of eggs into system (Chickens Cage) |
| Candling Booth | LED/optical candling to detect cracked/dirty eggs (egg-machine.com) |
| Dimensions (Example) | 1.7 × 1.45 × 1.00 m for 4,000 eggs/hr model (en.zenyer.cn) |
| Power (Example) | 320 W for 4,000 eggs/hr model; 1.1 kW for 10,000 eggs/hr model (egg-equipment.com) |
| Weight (Net) | ~150 kg for smaller models; ~550 kg for 10,000 eggs/hr model (egg-equipment.com) |
| Loading Direction | Left or Right loading options available (hightopbatterycage.en.made-in-china.com) |
-
-
Vacuum egg lifter (optional) to load batches of eggs efficiently with minimal manual handling.
-
High-precision weighing system and multi-grade sorting based on weight with accuracy within ±1 g.
-
Egg candling/inspection booth with LED lighting to detect defective eggs (cracked, dirty, irregular).
-
Modular design with stainless steel construction, easy cleaning and maintenance.
-
Flexible egg-feeding direction (left or right) to match production layout.
-
Integration capability: can be connected to egg washers, printers, tray-packers and full processing lines.
-
PLC/touch-screen control for automatic operation, self-diagnosis and counting functions (per grade output).
- Suitable for commercial farms, egg processing lines, packaging plants and high-capacity operations.
-
