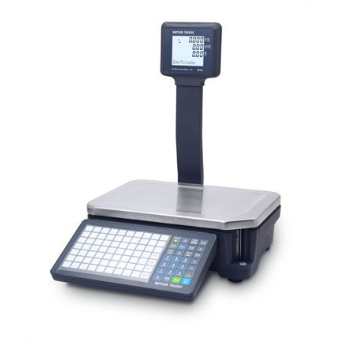

B- PLUS (LABEL PRINTING SCALE)
The B-PLUS Label Printing Scale is a high-performance retail weighing and labeling system designed for supermarkets, groceries, and commercial outlets. It integrates weighing, price computing, and label/barcode printing into one compact, efficient unit.
With its high-speed thermal printer, PLU memory, and network connectivity, the B-PLUS ensures fast and accurate checkout operations. Its intuitive interface and durable design make it ideal for both self-service and back-office use.
| Specification | Details |
|---|---|
| Model | B-PLUS Series |
| Weighing Capacity | 6 kg / 15 kg / 30 kg (dual range optional) |
| Division (d) | 2 g / 5 g / 10 g |
| Display Type | Dual LCD / VFD display (Operator & Customer sides) |
| Printing Method | High-speed direct thermal printer |
| Print Speed | Up to 100 mm/sec |
| Label Width | 30–60 mm (adjustable) |
| Label Length | 40–120 mm (customizable) |
| Memory / PLUs | 10,000 – 30,000 PLUs (depending on configuration) |
| Barcode Types Supported | EAN-13, EAN-8, UPC-A, Code128, Code39 |
| Connectivity | Ethernet (LAN), RS-232, USB; optional Wi-Fi |
| Power Supply | AC 110–220 V, 50/60 Hz |
| Operating Temperature | 0 °C ~ +40 °C |
| Platform Size | 360 × 250 mm |
| Housing Material | Stainless steel platform with ABS body |
| Optional Functions | Receipt printing, logo printing, data upload/download |
| Compatible Software | Label editing and PLU management software (Windows) |
-
Combines weighing, price computing, and label/barcode printing in one machine.
-
Fast thermal printing with customizable barcode and logo layouts.
-
Supports PLU management, item name editing, and price update through PC or LAN.
-
Dual-sided display for operator and customer convenience.
-
Stores up to 30,000 PLUs with real-time database synchronization.
-
Multiple barcode types and label templates supported.
-
Compact and durable construction for retail environments.
-
Optional Wi-Fi or Ethernet communication for networked operation.
-
Easy-to-use interface with numeric keypad and shortcut keys.
-
Ideal for supermarkets, groceries, delis, and fresh markets.
